Description

The DX Hub is a remote audio network hub that can be
Connect to any Allen & Heath SQ or Avantis mixer via Slink,
Or any Avantis mixer or DLive system equipped with a Gigaace I/O module.

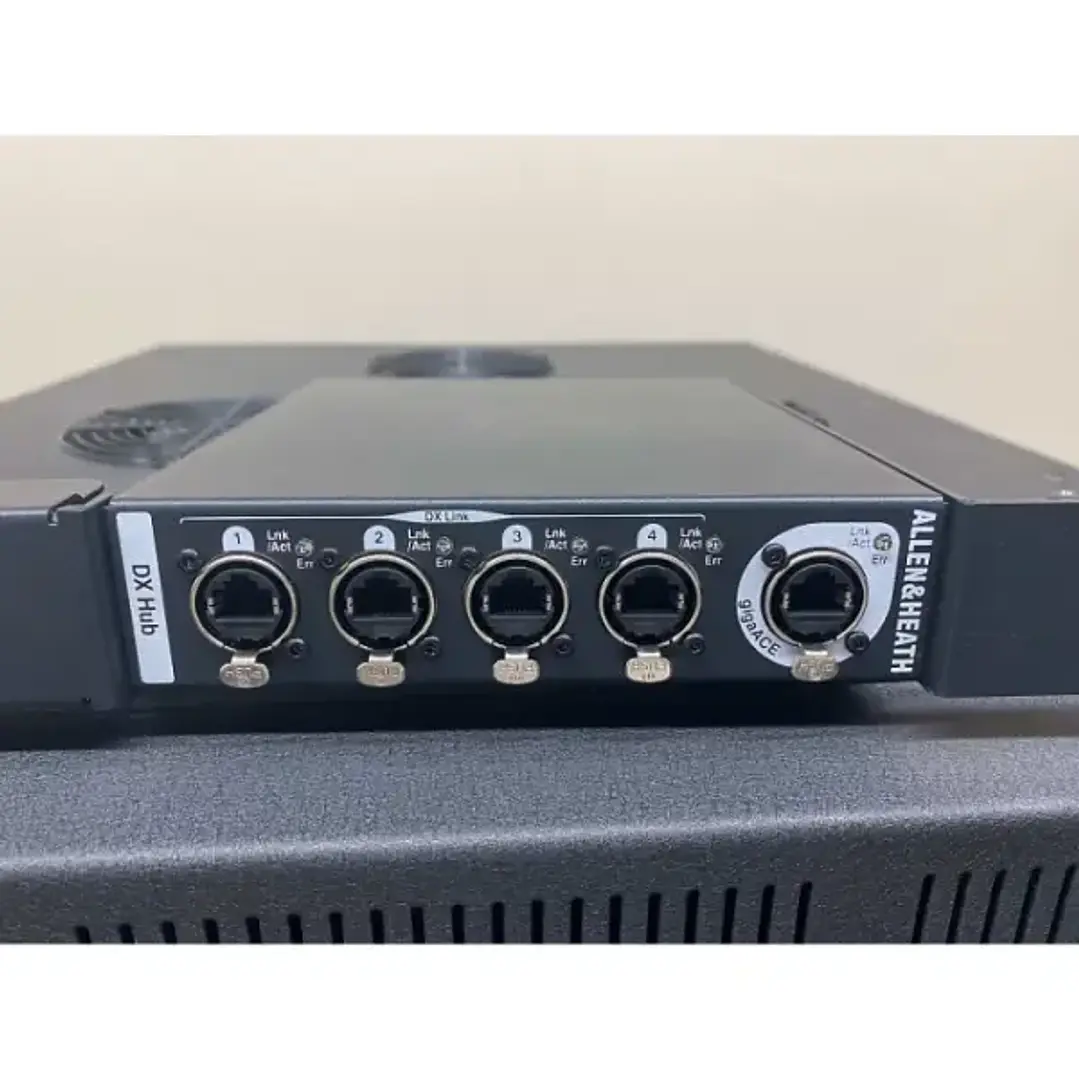

Provides 4 DX Link ports, each with 32 × 32 96 kHz audio channels,
which can be used to connect to DX expansion units.
Up to 2 DX Expanders can be connected to each DX LINK port, which
Allows you to add up to 128 remote inputs and 64 remote outputs to the system.
Multiple DX hubs can be used for further expansion or double redundancy (DLive only).

Specs

-Compatible with any SQ mixer via SQ Slink port
- Compatible with any DLive system equipped with an optional Gigaace I/O card

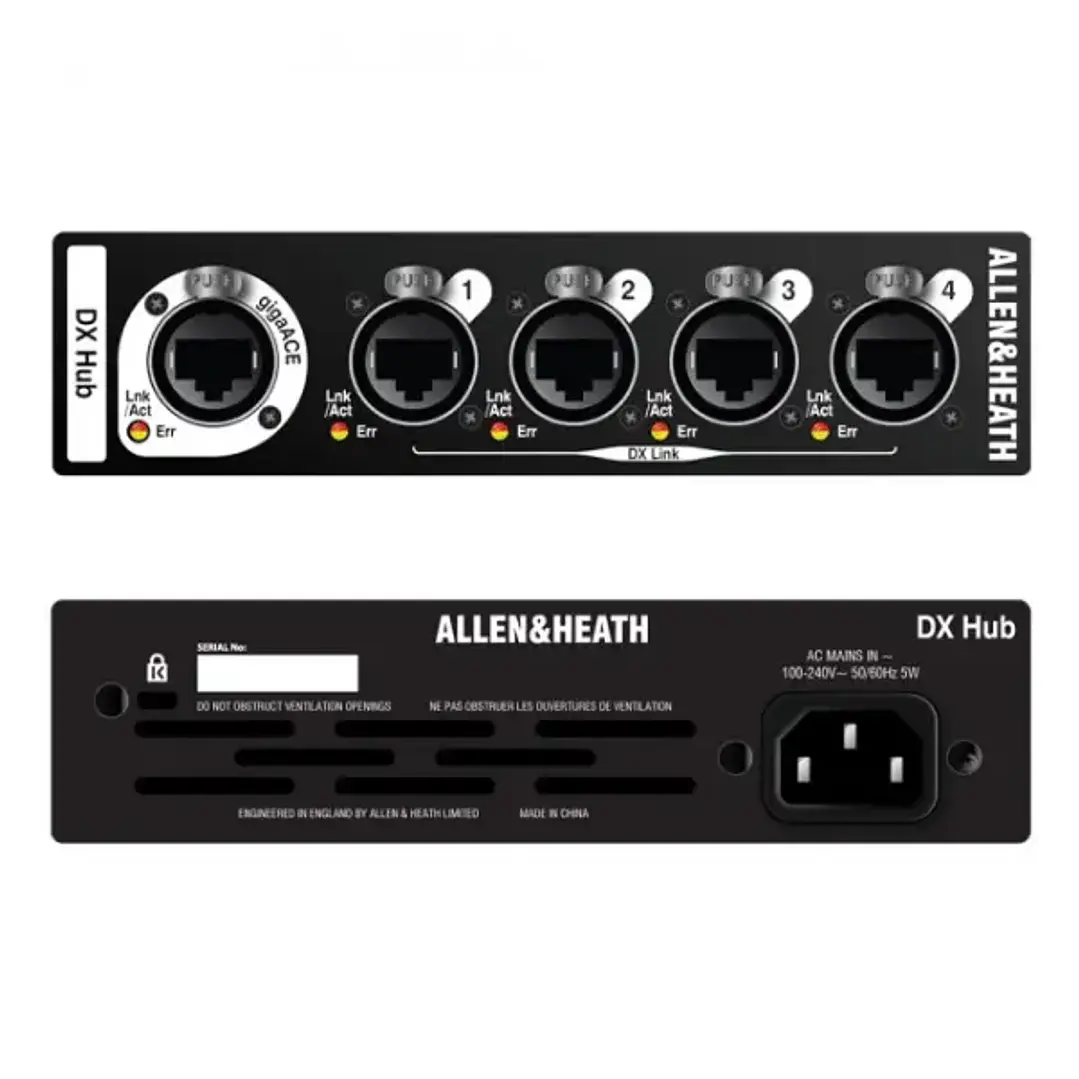

-Four Independent DX Link Ports
-Connect a DX32 or up to two DX168/DX164-W expansion units to each DX LINK port
- Up to 32x32 E/O via DX Link port, at 96 kHz
-CAT5E link up to 328'
-Self-locking EtherCon connectors
-Connections can be used via a VLAN
- Supports DX firmware automatic matching
-Ethernet L2 compatible
- Redundant or unique link
-plug-and-play, no network routing
- Independent or 19" rack mount operation (rack mount kit is available separately)
