Audix FP7 (7pcs) Kit for Drums

The FP7 Drum Microphone Kit contains a combination of F2, F5 and F6 dynamic microphones and the F9 condenser for overhead. The F5 is box tuned and can also be used for bongos, timbales, guitar boxes and acoustic instruments; The F2 dynamic microphone is ideal for rack and floor toms, congas, djembé, bongos, timbales, metals and woodwind instruments. The F6, with its extended bass response, is designed for bass drum, bass cabinets, drawer and other low-frequency instruments. The F9 condenser microphone is designed for cymbals and charles.

Designed to withstand the rigors of live applications, Fusion series microphones are also great for rehearsals, schools, places of worship, and a wide variety of home recording applications.6

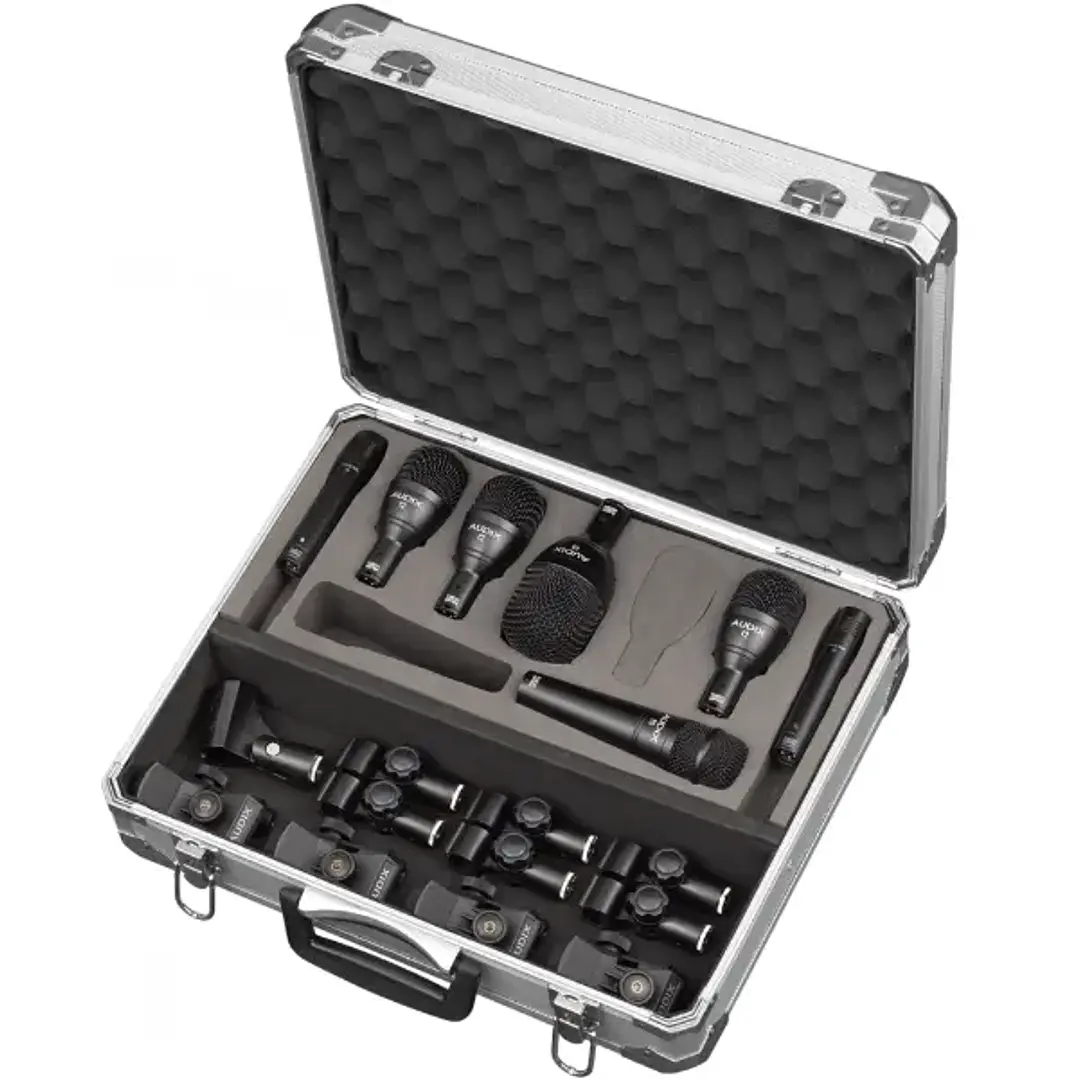

What includes

1 x F5 Dynamic (Box)

3 x F2 (Toms)

1 x F6 (drum)

2 x F9 (air)

6 x DClip Small Microphone Clips5

Technical specifications

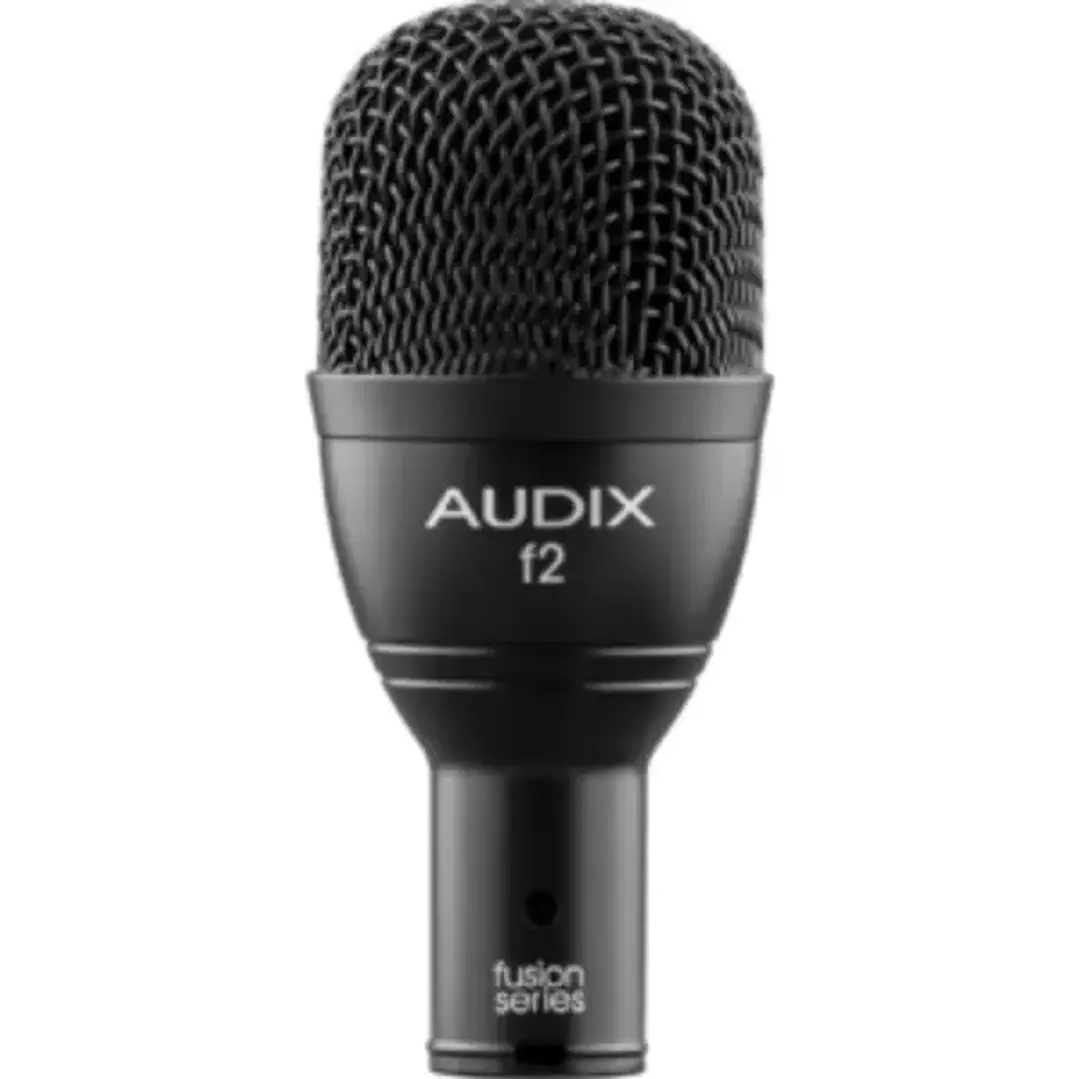

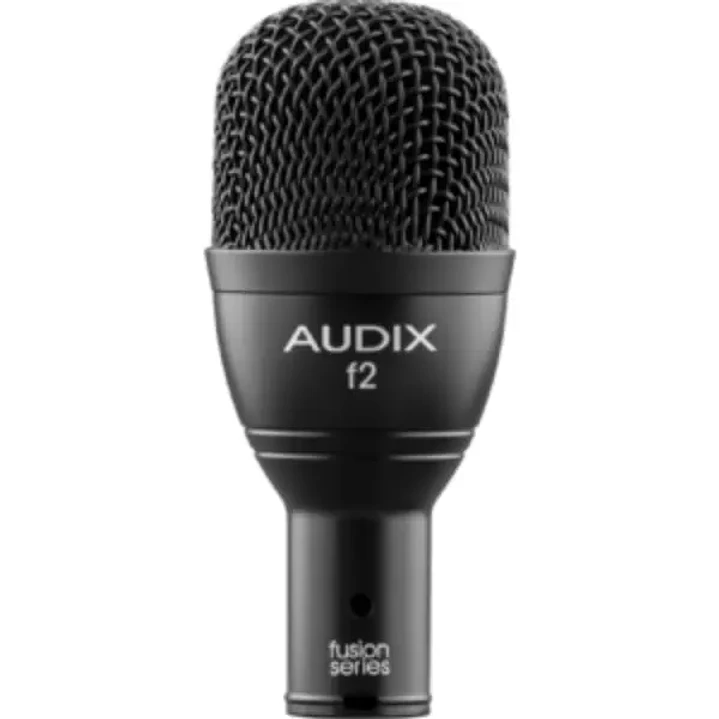

F2
Transducer: Dynamic
Response frequency: 52 Hz – 15 kHz
Polar pattern: hypercardioid
Output impedance 580 ohms
Sensitivity: 2mV/Pa 1K
Maximum SPL =139 dB
Rejection of the axis OFF =20
Power Requirements: None
Materials / Finish: Zinc Alloy / Black Finish
Weight: 247 grams
Length 104 mm

F5
Transducer: Dynamic
Response frequency: 52 Hz – 15 kHz
Polar pattern: hypercardioid
Output impedance 580 ohms
Sensitivity: 2.2mV/Pa 1K
Maximum SPL =137 dB
Rejection of the axis OFF =20
Power Requirements: None
Materials / Finish: Zinc Alloy / Black Finish
Weight: 283 grams
Length 145 mm

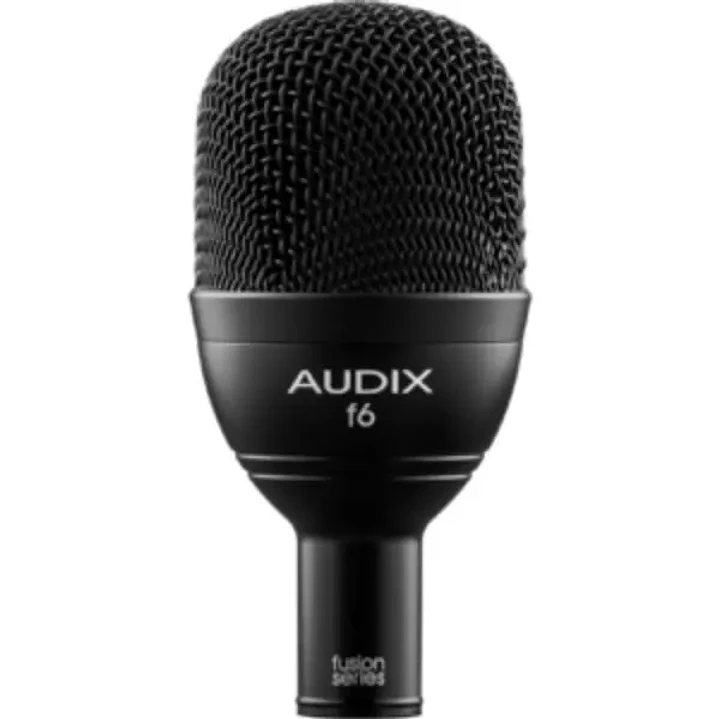

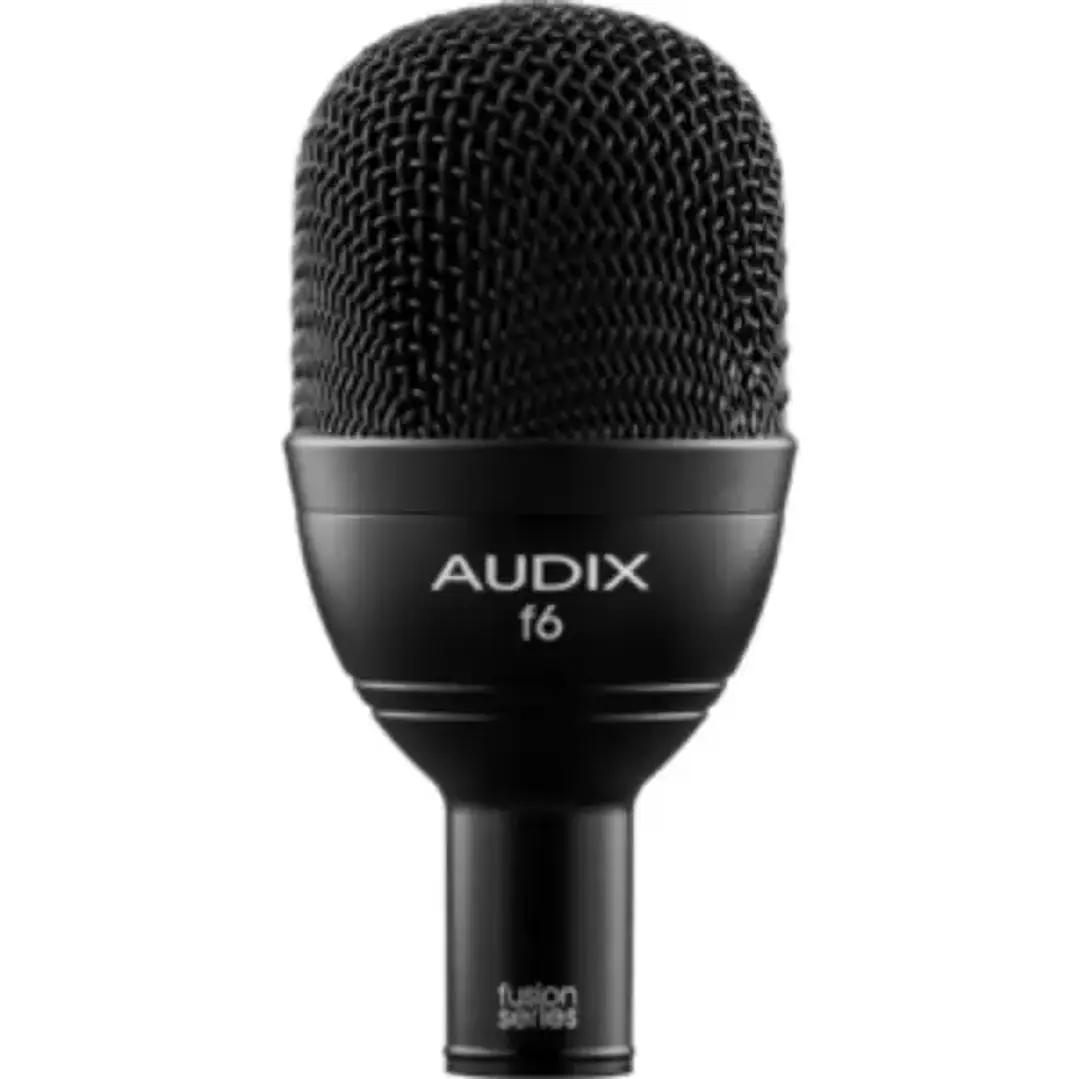

F6
Transducer: Dynamic
Response frequency: 40 Hz – 16 kHz
Polar pattern: hypercardioid
Output impedance 580 ohms
Sensitivity: 1.2mV/Pa 1K
Maximum SPL =140 dB
Rejection of the axis OFF =23
Power Requirements: None
Materials / Finish: Zinc Alloy / Black Finish
Weight: 311 g
Length 121 mm

F9
Transducer: Capacitor
Response frequency: 40 Hz – 20 kHz
Polar pattern: Cardioid
Output impedance 200 ohms
Sensitivity: 8mV/Pa 1K
Maximum SPL =137 dB
Off axis rejection: less than or equal to 24 dB
Power Requirements:12-48V Phantom
Materials / Finish: Zinc Alloy / Black Finish
Weight: 95 grams
Length 111 mm
