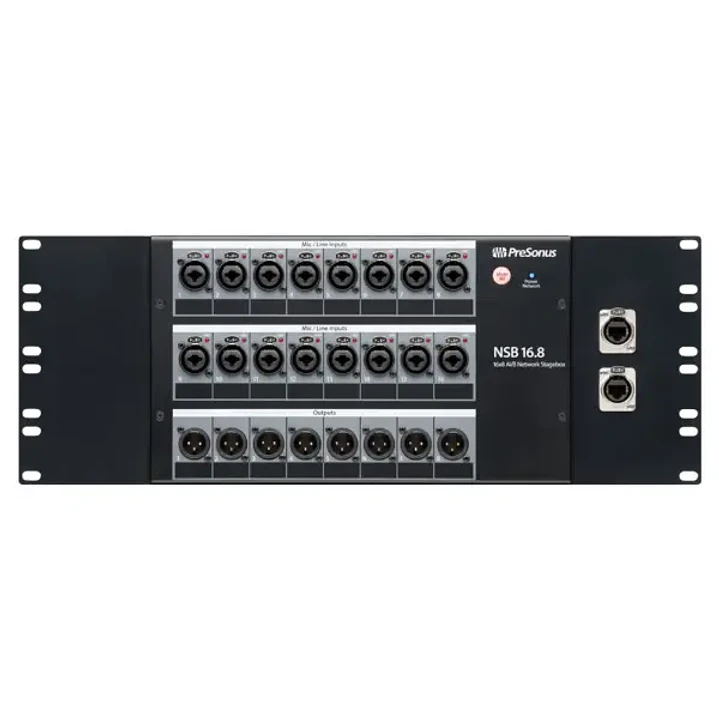

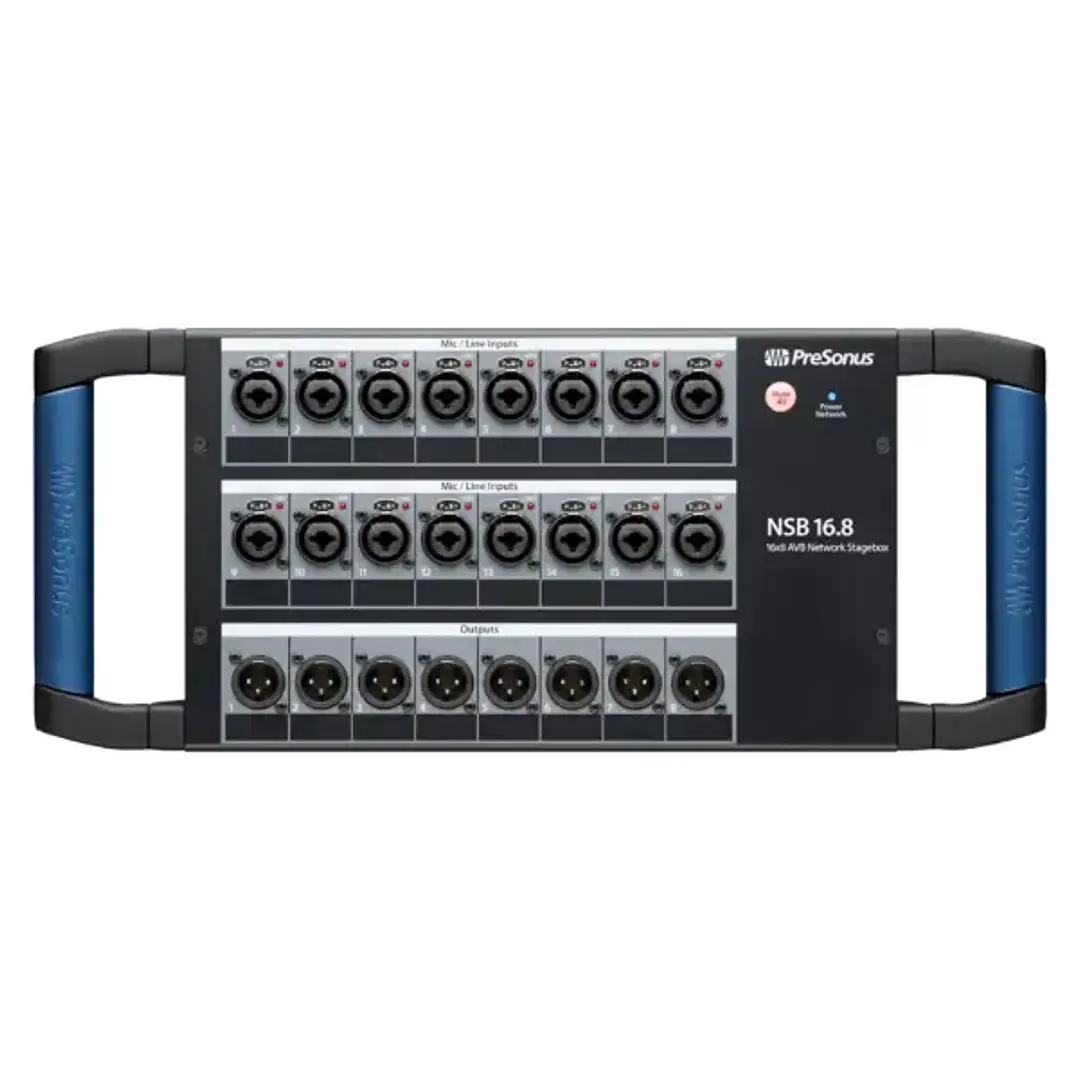

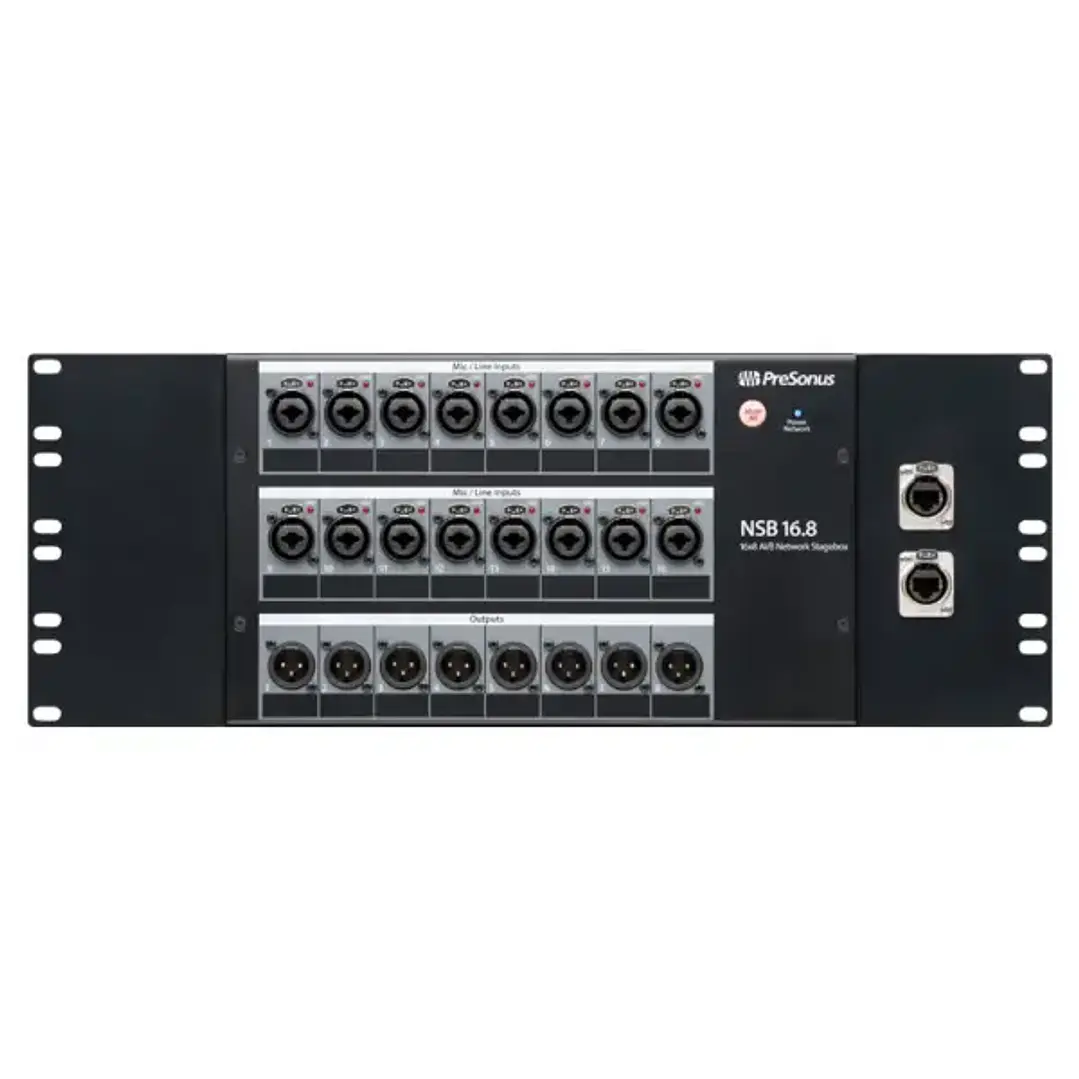

StageBox Digital in rack format offering 16 XLR/TRS combo inputs with Xmax preamps and 8 balanced XLR outputs. It works via AVB network, allowing full remote control from StudioLive Series III consoles or UC Surface software.
- Analog Inputs: 16 XLR/TRS Combo Mic/Line 48 V+
- Analog Outputs: 8 XLR Line Outputs Locking
- Network connectivity: AVB (2 Ethercon ports, Daisy-chain)
- Mic Preamps: Xmax Class A, Remote Control, Gain Compensation
- Line inputs (TRS): Combo jack, 10 kΩ impedance
- XLR outputs: 8 balanced outputs, line level
- A/D Conversion – D/A: 115 dB Dynamic Range, <0.005% THD
- Remote Control/Compatibility: SoundGrid, StudioLive III, Universal Control
- Construction / Power: Steel chassis, 4U rack, optional rack kit, 100–230 VAC, IEC locking connector
- Dimensions: 42.4 × 17.8 × 11.4 cms.
- Weight: 2.8 kgs.
