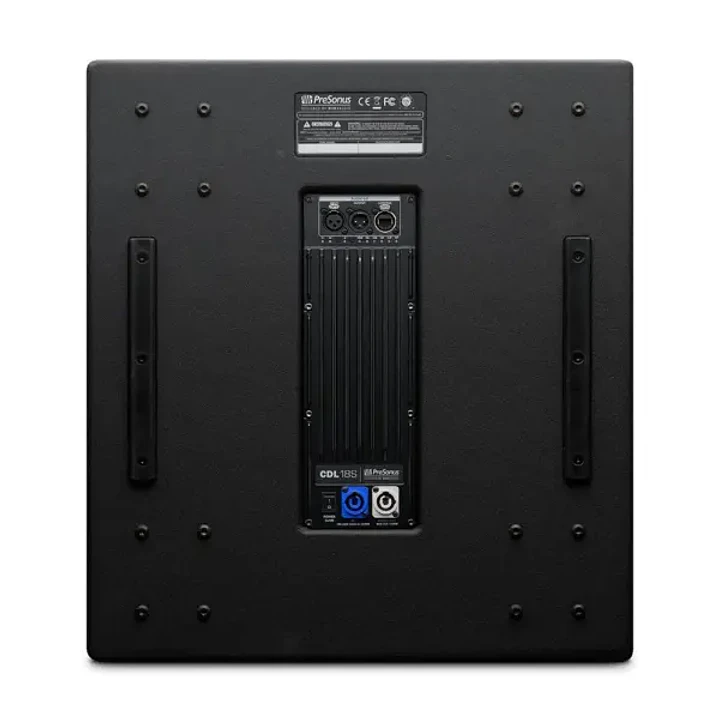

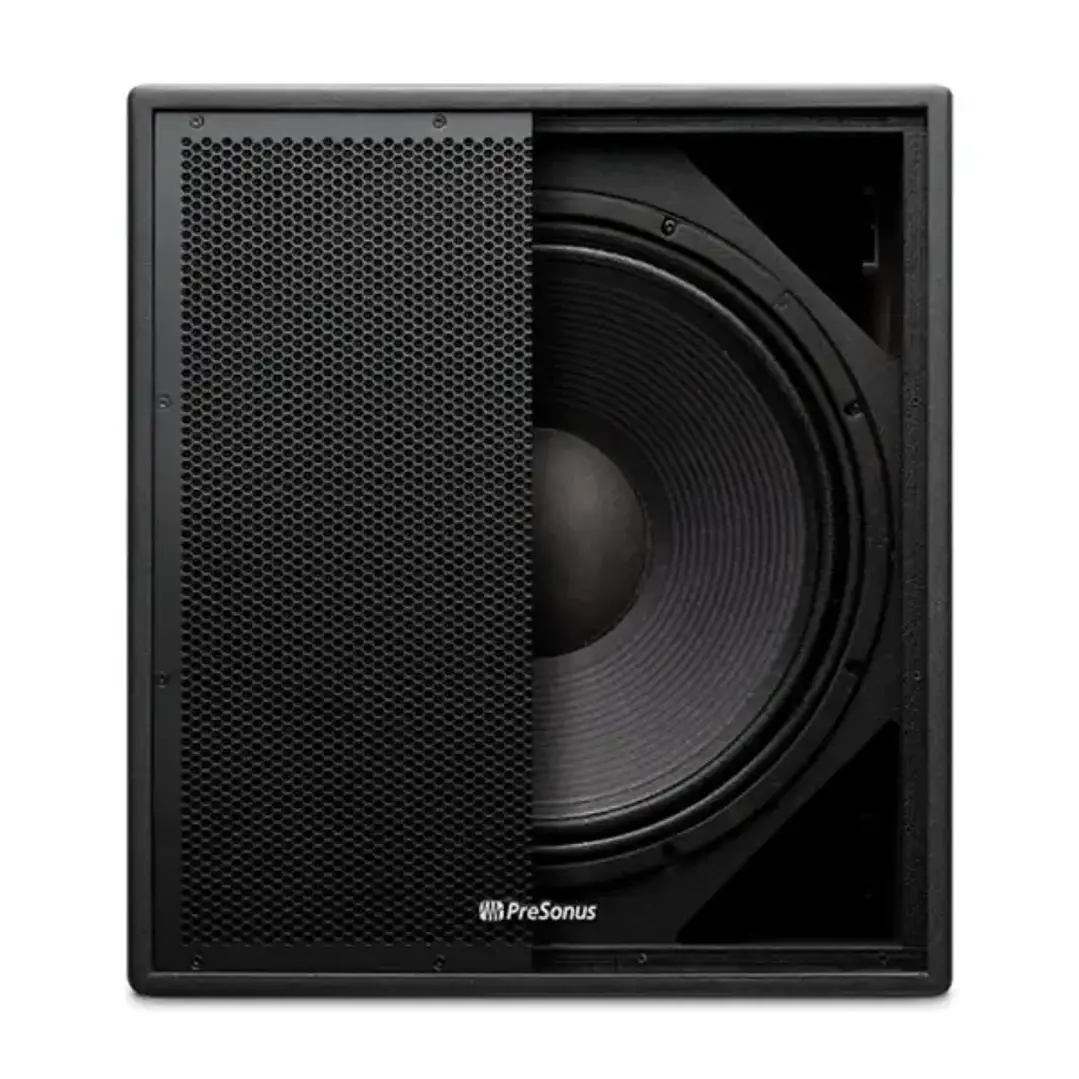

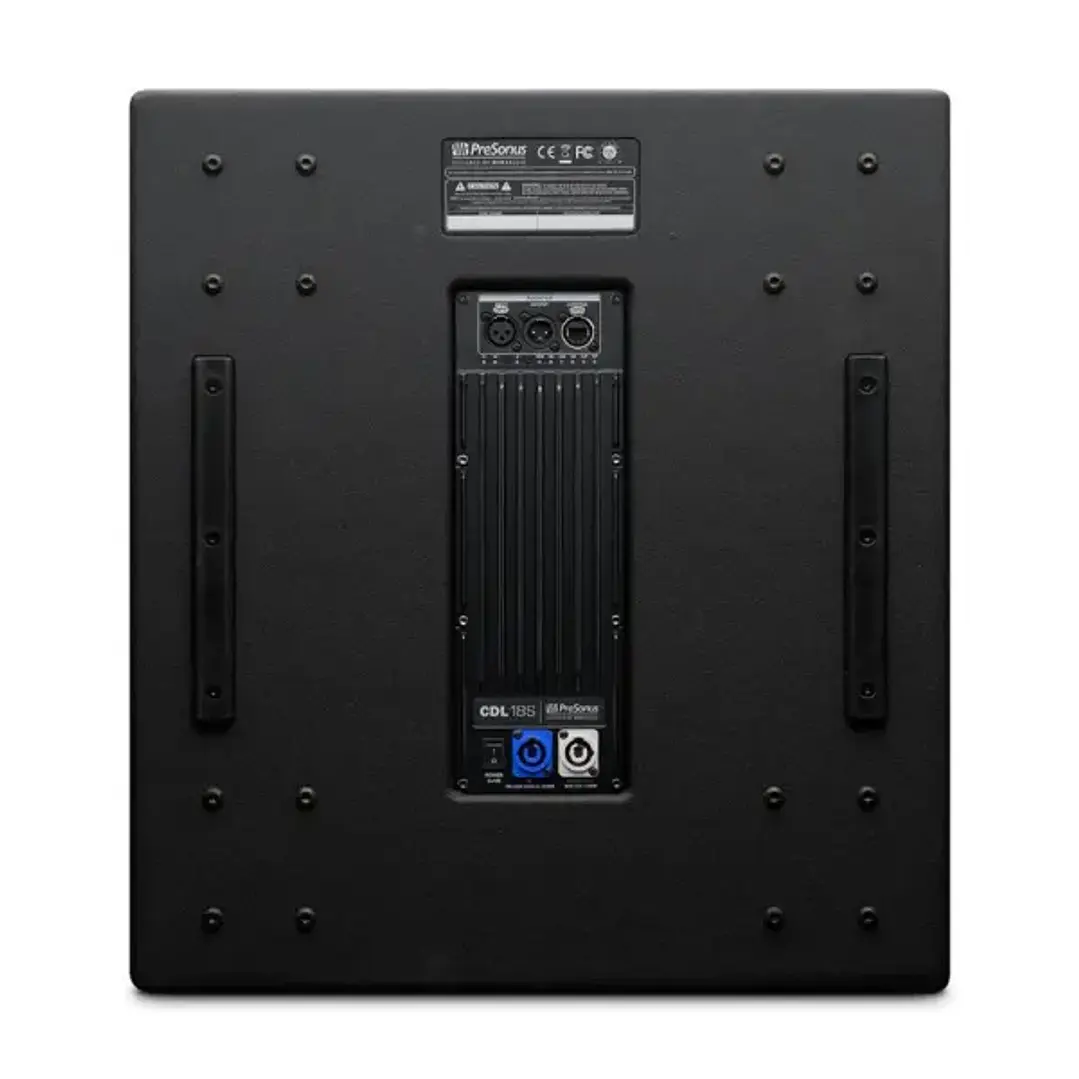

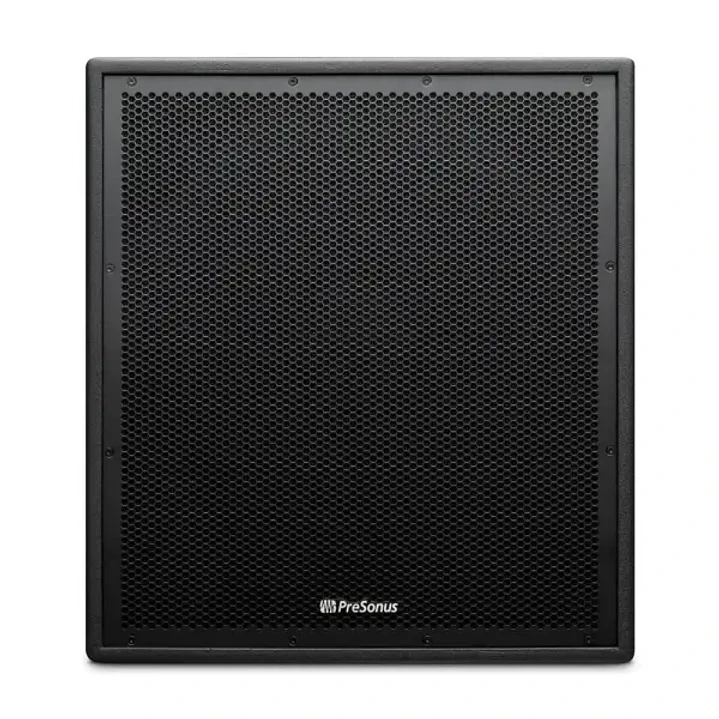

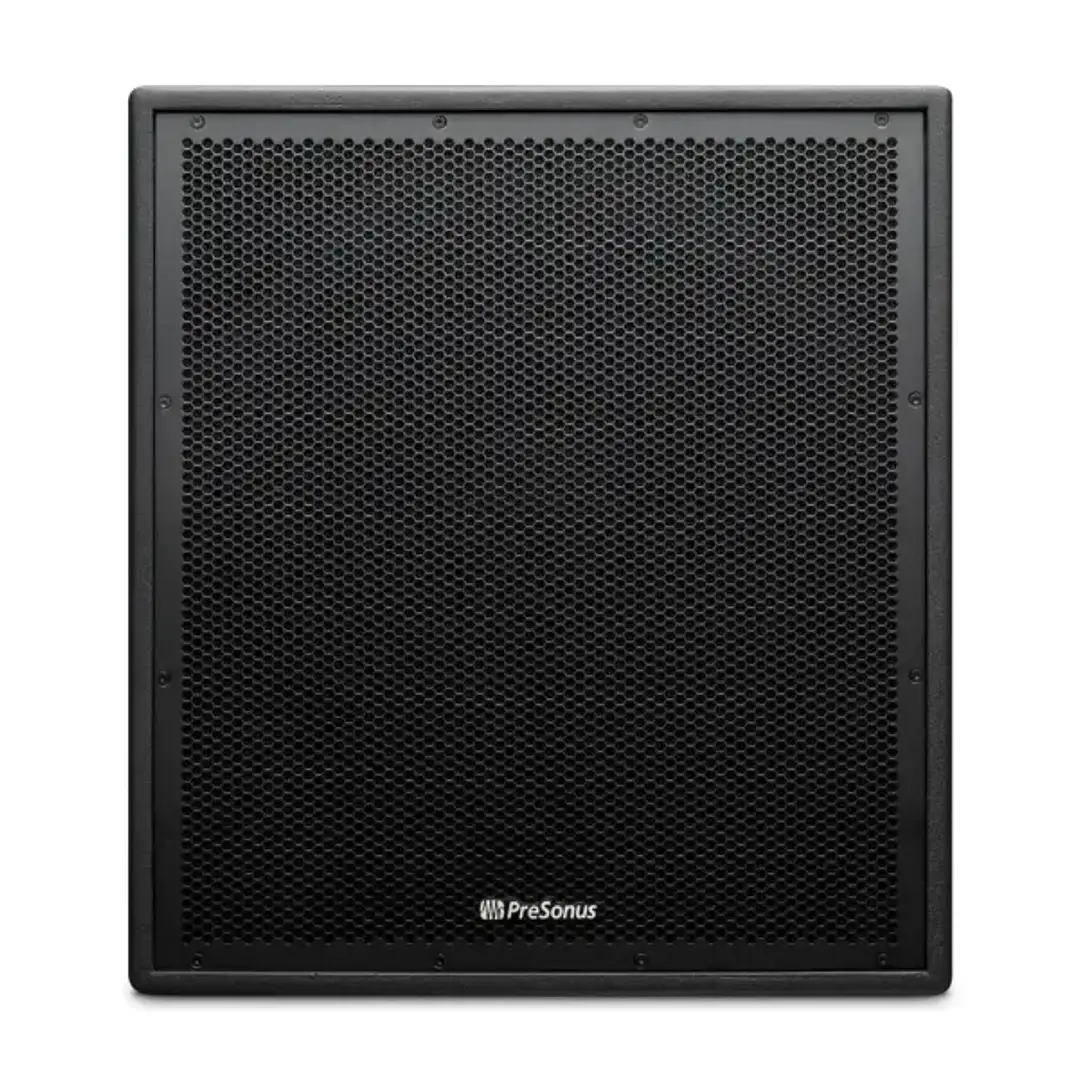

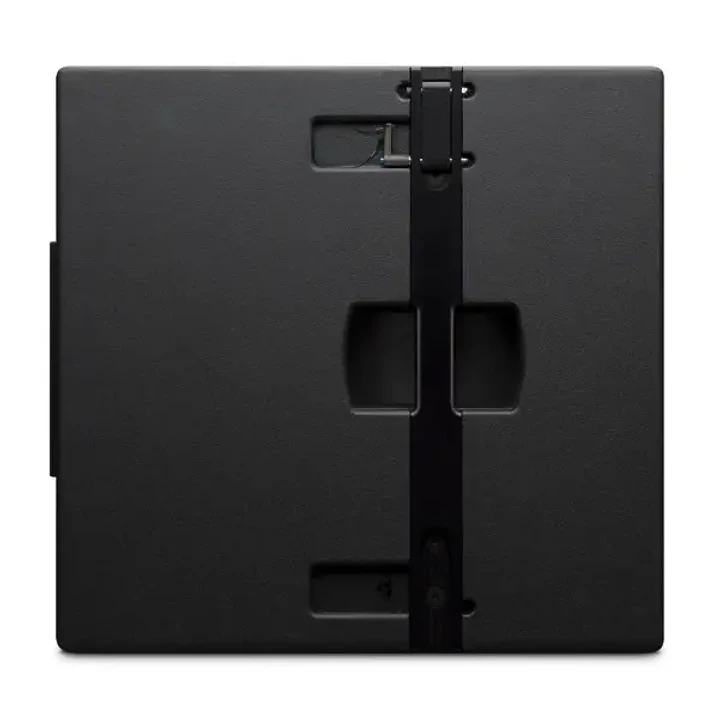

PreSonus CDL18s Under Active 18"

18″ PreSonus CDL18S active subwoofer with 2,000W Peak/500W RMS amplifier, Dante connectivity (Ethernet) and Worx software-controlled DSP. SPL maximum 135 dB. Frequency range 36–144 Hz. Compatibility with line array CDL12P.

Ideal for: Sound companies and event producers that need an 18″ active subwoofer with Dante connectivity for integration into professional audio network systems. Worx software management allows remote adjustment of delay, 8-band EQ and protection without physical access to the equipment.

Technical characteristics:

• Type: 1-way active subwoofer.
• Transducer: 18″ with ferrite magnet, 4″ voice coil.
• PEAK POWER: 2,000 W.
• RMS power: 500 W.
• Maximum SPL (peak): 135 dB.
• Frequency range: 36 Hz – 144 Hz.
• Frequency response (−3 dB): 42 Hz – 150 Hz.
• Built-in DSP: Worx software — compressor, limiter, delay, polarity reversal, EQ 8 bands.
• network connectivity: Dante (Ethernet lock).
• ENTRY: 1 × XLR (line).
• Output: 1 × XLR (direct output).
• Assembly: M20 post + integrated hardware with pins.
• Net Weight: approx. 44 kg.
• Gross weight (with minimum packaging): approx. 46 kg.

Connection and use: Connect the line XLR from the processing system or console. For advanced configuration, connect via Dante to the network switch and manage parameters with the Worx software from a computer. Locate the sub on the ground or mount it on M20 pole to maximize bass dispersion.
