PreSonus Monitor Station V2 Monitoring Control
Description
Professional monitoring controller designed for studies that require advanced management of multiple sources and listening systems.
Tickets
- 2 x Balanced Stereo – ¼″ TRS connectors (ST1 and ST2)
- 1 x Unbalanced Aux Stereo - RCA Connectors with Gain Control
- 1 x Unbalanced Aux Stereo – ⅛″ TRS Connector
- 1 x Digital S/PDIF Coaxial input - RCA format, supports 44.1, 48, 88.2 and 96 kHz

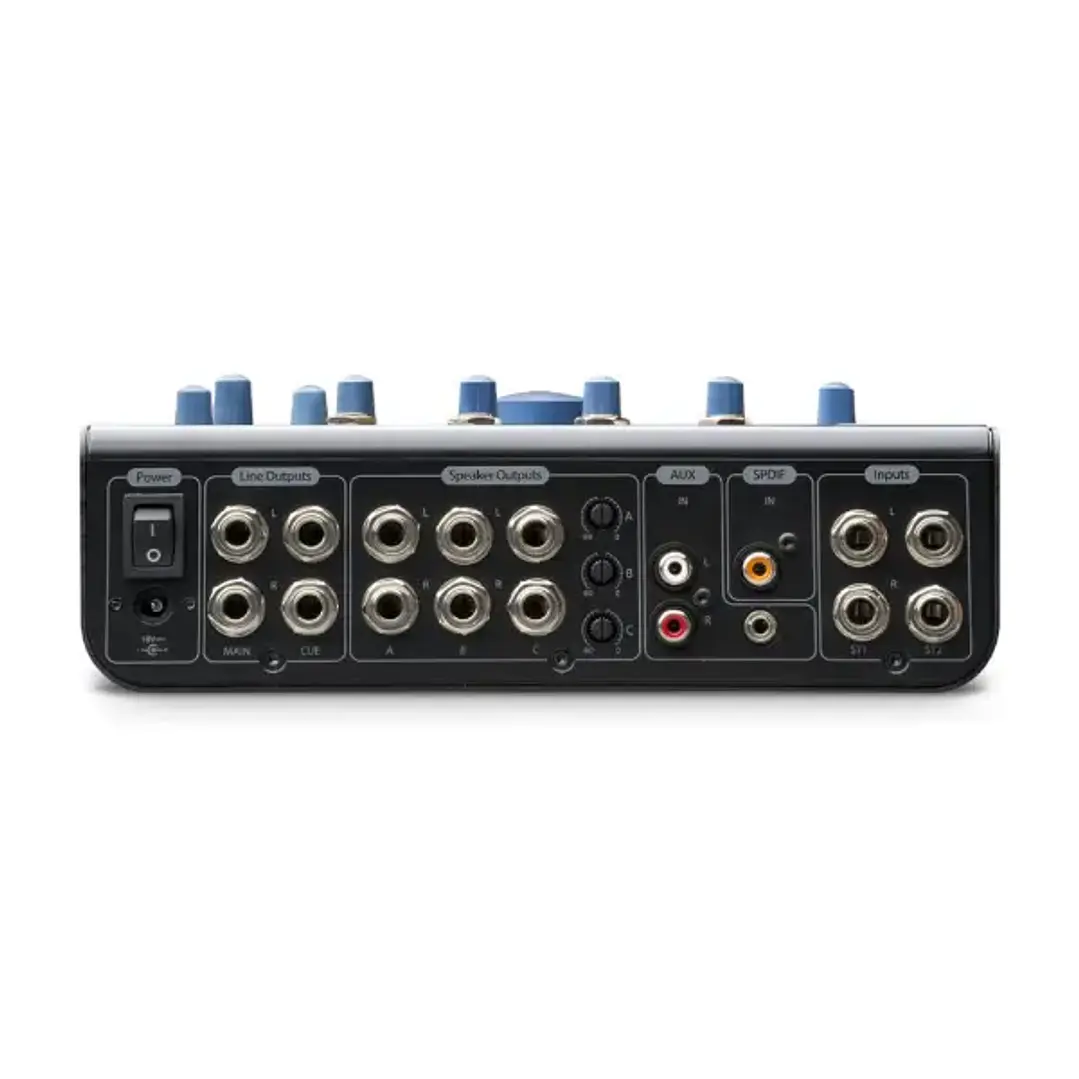

Departures
- 3 x balanced stereo pairs for monitors – ¼″ TRS connectors, with independent level control per output
- 1 x Pair of Main Outputs – ¼″ TRS Balanced (Main Output)
- 1 x Pair of CUE outputs – ¼″ TRS balanced (for alternating mixing or sending to cabin)
- 4 x Independent Headphone Outputs – ¼″ TRS, each with its own level control

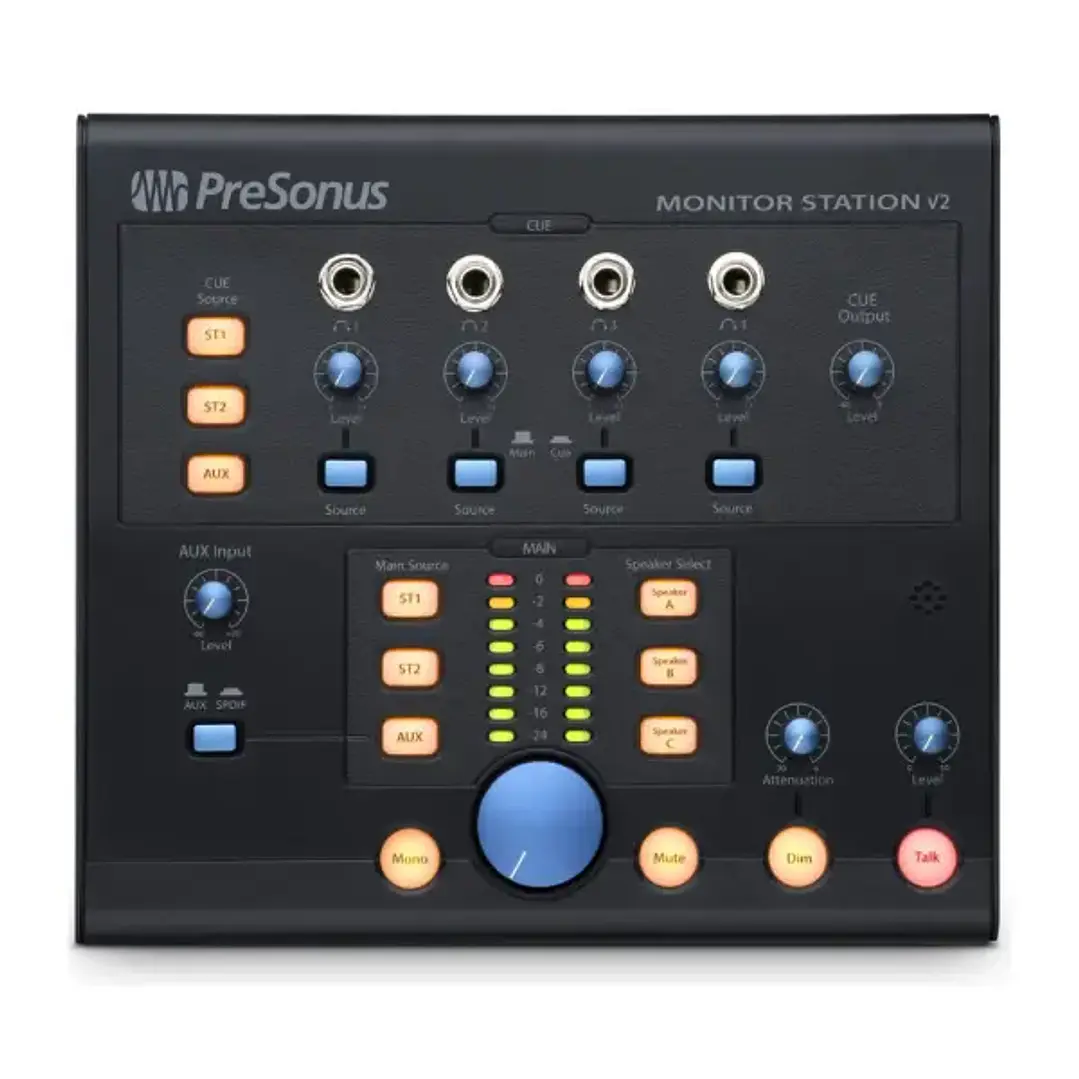

controls and functions
- Main volume control with large potentiometer
- Font Select Buttons: ST1, ST2, AUX/S/PDIF
- Monitor output selection buttons: A, B, C
- Control buttons: MUTE, DIM (with level adjustment), mono
- 8-segment LED meters with adjustable calibration
- Built-in Talkback Microphone with Gain Control and Dedicated Button
Electrical and general specifications
- Signal/Noise Ratio (SNR): ≥ 105 dB
- Total Harmonic Distortion (THD): < 0.01%
- Input impedance: 10 kΩ
- Output impedance: 51 Ω
- Power Consumption: 10W approx.
- Power: External power adapter included
dimensions and weight
- Width: 228.6 mm
- Depth: 216 mm
- Height: 63.5 mm
- Weight: 4.54 kg
