RelaCart Mixx8.6 Digital Mixer

Mixx8.6 digital mixer designed with 8 inputs and 6 outputs. Built-in digital audio processing features, such as effects, equalizer, compressor, etc. And it is equipped with a USB interface, which can transmit audio through mobile phones and computers. It has 16 types of digital reverb effects, which can be easily adjusted for various occasions with the encoder. Mixx8.6 has a simple and exquisite appearance, with a suitable design for various small-scale performances, conferences, speeches, KTV, live streaming and other occasions.

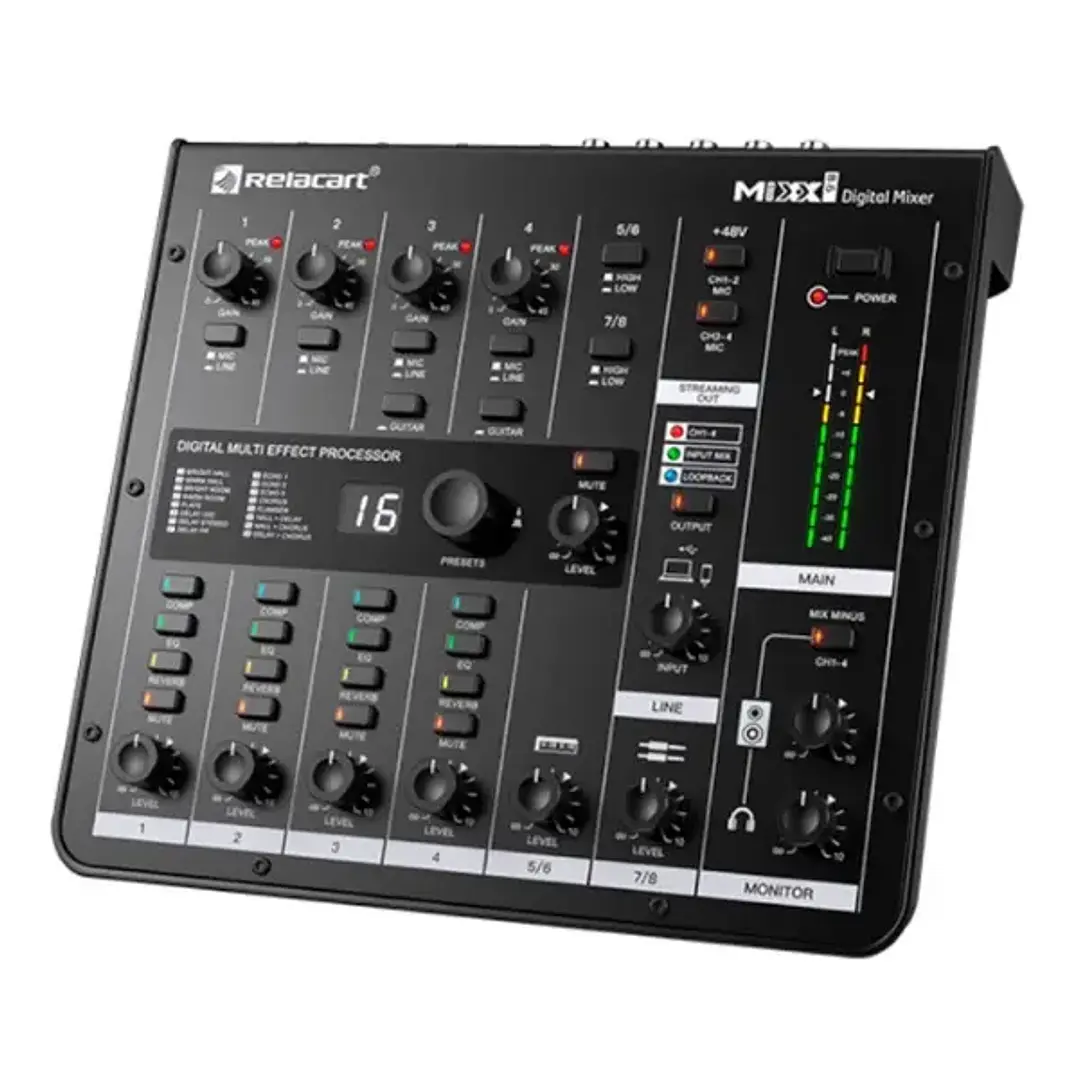

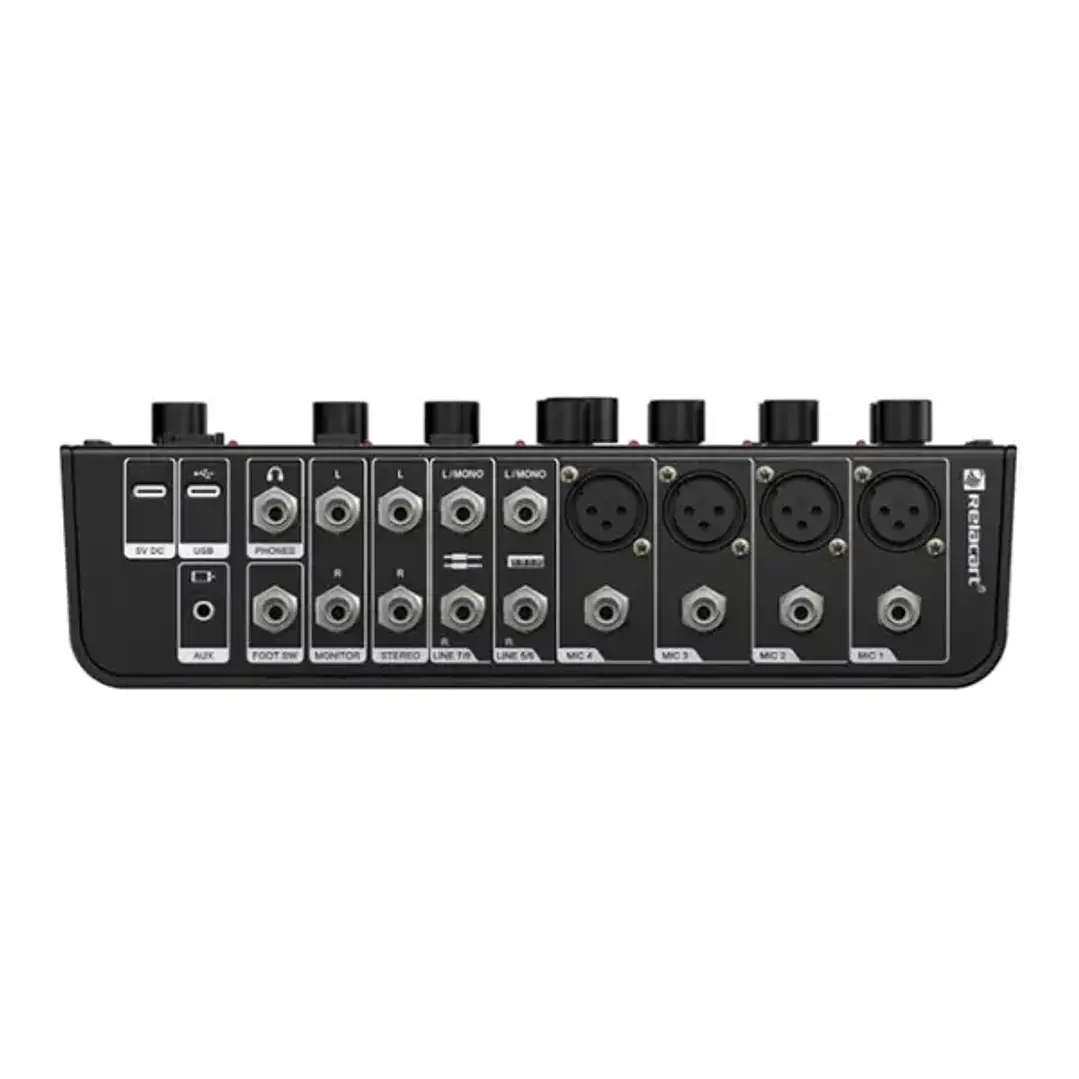

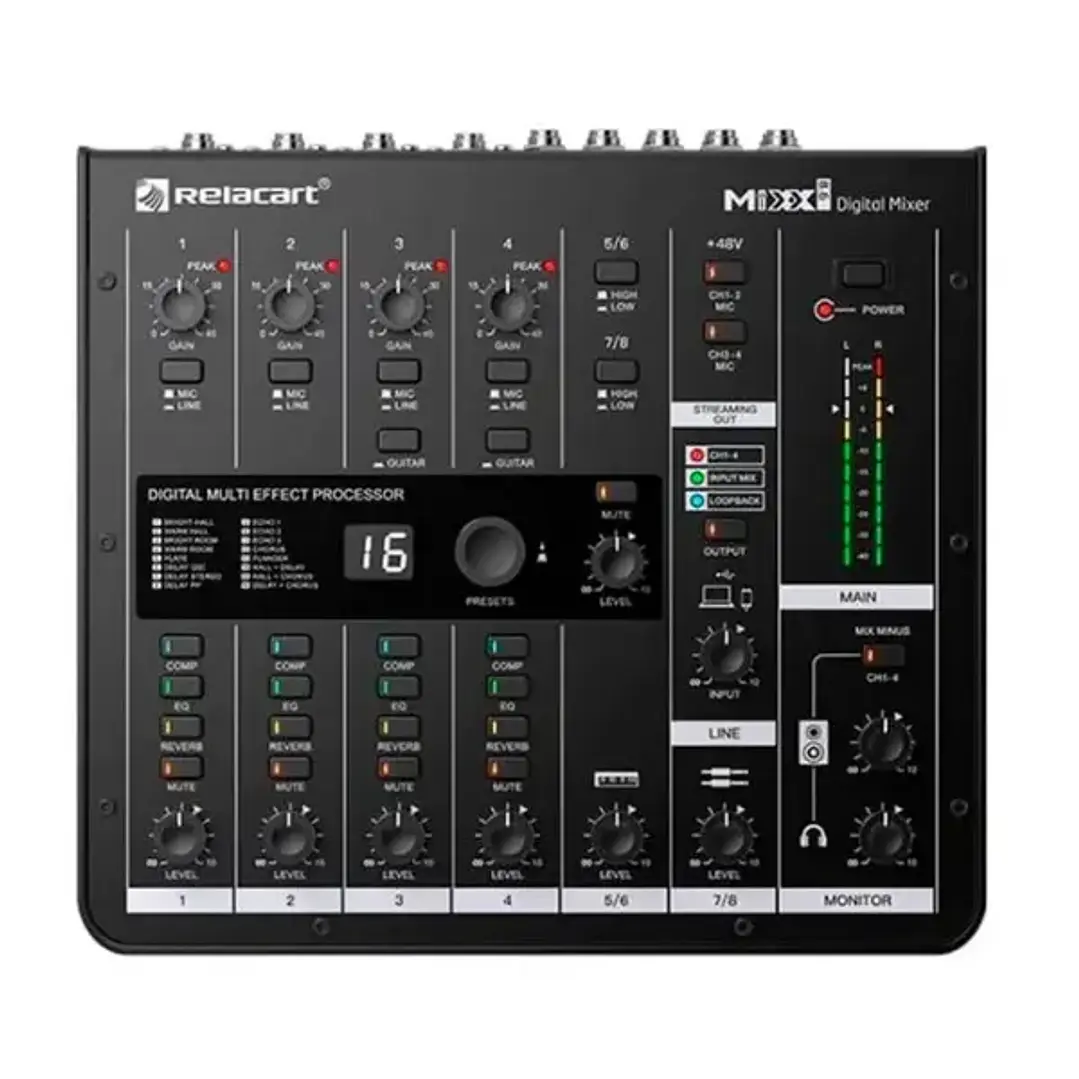

multifunctional panel. The mixer panel can turn various functions on and off, including EQ, mute, compressor, reverb, 48 V phantom power, etc. Eight channels 1-4 input channels can select MIC or LINE input source. 3 and 4 input channels can be configured as instrument input sources. Channel 5-8 is stereo input, you can change the H/L impedance. 48 V Phantom Power Channels 1-4 provide a +48 V phantom power supply, which is controlled by panel button switches. Audio USB output can be configured in multiple audio modes to make it suitable for various applications. Professional reverb effect Professional reverb function, which can simulate various sound effects. Real-time monitor Mix Minus Excludes channel audio input 1-4 of local playback and monitoring.

• Sample rate: 24 bits, 48 kHz


• Frequency response: 20 Hz to 20 kHz +0/ – 1 dB


• T.HD: <0.1%


• Signal/Noise Ratio : 90 dB Maximum single-channel fader (A-weighted)


• Dynamic range: 100 dB single channel maximum attenuator (weighted)


• Common mode rejection ratio: >70 dB to 1 kHz


• Microphone input impedance: 3.3K Ω (XLR balance); 1.8K Ω（1/4″）


• Line input impedance: 10K Ω (1/4″)


• Output impedance: 150 Ω


• Gain: 0 to 60 dB (XLR)


• SW FOOT :REVERB ON/OFF


• Phantom power supply: +48V


• USB audio: 2in/2out compatible with USB audio class 2.0


• Power Supply: DC 5V (1A)


• Power consumption: up to 5W


• Dimensions (mm): 260 (length) x 230 (height) x 89 (depth)
